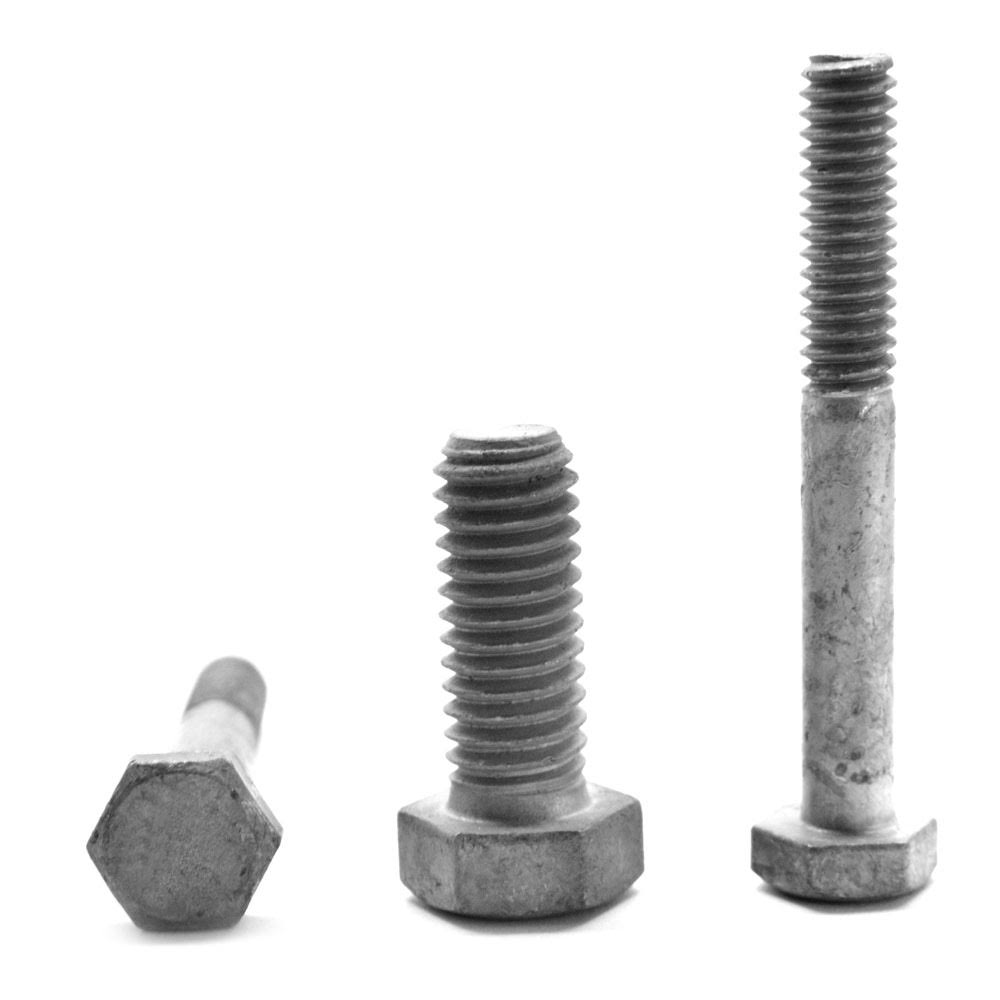

1/4x22-20 x 5 1/2x22 Coarse Thread Hex Bolt Low Carbon Steel Hot Dip Galvanized O360330
Sale price
$13.50
Regular price $52.55
Skip to product information
Part #: 0000-118588. Buy as few as 100 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-118588 Fastener Type: Hex Bolt Size Description: 1/4'-20 x 5 1/2' (PT) Diameter/Nominal Size: 1/4' Length: 5 1/2' Wrench Size/Across Flats: 7/16' (0.428-0.438') Width Across Corners: 0.448-0.505' Head Height: 5/32' (0.150-0.163') Thread Pitch: 20 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: Partial System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Hot Dip Galvanized Head Type: Hex Drive Type: External Hex Standards Met: A307 Average Piece Weight: 0.0795600 lbs. Hexagonal heads and machine threads used with a nut or in a tapped hole; also known as or machine bolts. Hex bolts are similar to hex cap screws. What is the difference between a hex cap screw and a hex bolt? A hex cap screw has tighter tolerances on the body dimensions and features a chamfered end and a washer face under the bolt head. A hex cap screw is often called a finished hex bolt. Hex bolts have a flat end and lack the washer face under the head. Hex bolts may have an undersize body in longer lengths.
1/4x22-20 x 5 1/2x22 Coarse Thread Hex Bolt Low Carbon Steel Hot Dip Galvanized O360330
Sale price
$13.50
Regular price $52.55
Shipping calculated at checkout.
